April 27, 2020

Learn how to do Mutual TLS in Quarkus apps

By Mattia Mascia

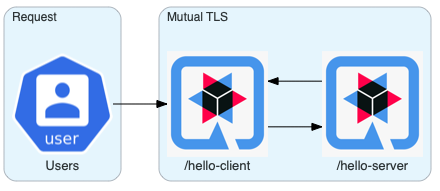

In this entry, we explore how to set mutual TLS encryption between two Quarkus applications manually. Both on bare metal and Kubernetes.

What is Mutual TLS Authentication?

Mutual TLS authentication or two way authentication is an extension of Transport Layer Security (or “TLS”), and it ensures that traffic between the client and server is secure and trusted in both directions.

Why Mutual TLS?

It is an additional security layer which verifies not only the server identity but also the client one.

How implement it?

The best approach to implement Mutual TLS between two services is to delegate it to the infrastructure, for instance, a Service Mesh. This achieves a standard and secure way of communication and avoids that each application implements its solution. However, you are not always working on cutting edge environment.

Let’s have a look at how to implement mTLS with Quarkus if you don’t have a service mesh environment like Istio.

Bootstrapping

Let’s create both the server and client applications we will secure.

mvn io.quarkus:quarkus-maven-plugin:1.4.1.Final:create \
    -DprojectGroupId=org.acme \
    -DprojectArtifactId=quarkus-server-mtls \
    -DclassName="org.acme.server.mtls.GreetingResource" \
    -Dextensions="rest-client, resteasy-jsonb, kubernetes-client" \
    -Dpath="/hello-server"

mvn io.quarkus:quarkus-maven-plugin:1.4.1.Final:create \
    -DprojectGroupId=org.acme \
    -DprojectArtifactId=quarkus-client-mtls \
    -DclassName="org.acme.client.mtls.GreetingResource" \
    -Dextensions="rest-client, resteasy-jsonb, kubernetes-client" \
    -Dpath="/hello-client"

Certificate and Truststore generation

Of course, you need a server, client certificates and a truststore :)

keytool -genkeypair -storepass password -keyalg RSA -keysize 2048 -dname "CN=server" -alias server -ext "SAN:c=DNS:localhost,IP:127.0.0.1" -keystore quarkus-server-mtls/src/main/resources/META-INF/resources/server.keystore

keytool -genkeypair -storepass password -keyalg RSA -keysize 2048 -dname "CN=client" -alias client -ext "SAN:c=DNS:localhost,IP:127.0.0.1" -keystore quarkus-client-mtls/src/main/resources/META-INF/resources/client.keystore

For this example, we are simulating a truststore using:

client.keystore as truststore for the server application.
server.keystore as truststore for the client application.

cp quarkus-server-mtls/src/main/resources/META-INF/resources/server.keystore quarkus-client-mtls/src/main/resources/META-INF/resources/client.truststore

cp quarkus-client-mtls/src/main/resources/META-INF/resources/client.keystore quarkus-server-mtls/src/main/resources/META-INF/resources/server.truststore

Hello Server Application

Let’s open and configure the server quarkus-server-mtls

Enable SSL on the Hello Server Application

Add the following properties to enable SSL in your application src/main/resources/application.properties

application.properties

quarkus.ssl.native=true

quarkus.http.ssl-port=8443
quarkus.http.ssl.certificate.key-store-file=META-INF/resources/server.keystore
quarkus.http.ssl.certificate.key-store-password=password

quarkus.http.port=0
quarkus.http.test-port=0

See the guide Using SSL with Native to explore in details how SSL works in Quarkus.

Activate client authentication

application.properties

quarkus.http.ssl.client-auth=required
quarkus.http.ssl.certificate.trust-store-file=META-INF/resources/server.truststore
quarkus.http.ssl.certificate.trust-store-password=password

Update GreetingResource

To better see that the response is coming from the server application, let’s update the org.acme.server.mtls.GreetingResource class.

org.acme.server.mtls.GreetingResource

@Path("/hello-server")
public class GreetingResource {

    @GET
    @Produces(MediaType.TEXT_PLAIN)
    public String hello() {
        return "hello from server"; (1)
    }
}

1	Change the return statement in "hello from server"

And the test class.

org.acme.server.mtls.GreetingResourceTest

@QuarkusTest
public class GreetingResourceTest {

    @Test
    public void testHelloEndpoint() {
        given()
          .when().get("/hello-server")
          .then()
             .statusCode(200)
             .body(is("hello from server")); (1)
    }

}

1	Change the matcher in "hello from server"

Run it

mvn quarkus:dev

If everything is correct when you try to hit the /hello-server endpoint, you should expect the following error.

curl -k https://localhost:8443/hello-server
curl: (35) error:1401E412:SSL routines:CONNECT_CR_FINISHED:sslv3 alert bad certificate

This means that your client (curl) did not provide a trusted certificate when it connected to the server.

Hello Client Application

At this point, the server application is ready to accomplish Mutual TLS. Let’s open and configure the client quarkus-client-mtls

Add Rest client for the server application

org.acme.client.mtls.GreetingService

@Path("/")
@ApplicationScoped
@RegisterRestClient
public interface GreetingService {

    @GET
    @Path("/hello-server")
    @Produces(MediaType.TEXT_PLAIN)
    String hello();
}

Inject the GreetingService rest client on org.acme.client.mtls.GreetingResource.

org.acme.client.mtls.GreetingResource

@Path("/hello-client")
public class GreetingResource {

    @Inject (1)
    @RestClient (2)
    GreetingService greetingService;

    @GET
    @Produces(MediaType.TEXT_PLAIN)
    public String hello() {
        return greetingService.hello(); (3)
    }
}

1	CDI `@Inject` annotation.
2	MicroProfile `@RestClient` annotation.
3	Replace the return statement with the `greetingService.hello();`.

See the guide rest-client to explore in details.

Update the unit test

Add quarkus-junit5-mockito dependency to your project.

pom.xml

    <dependency>
      <groupId>io.quarkus</groupId>
      <artifactId>quarkus-junit5-mockito</artifactId>
    </dependency>

org.acme.client.mtls.GreetingResourceTest

@QuarkusTest
public class GreetingResourceTest {

    @InjectMock (1)
    @RestClient (2)
    GreetingService greetingService;

    @Test
    public void testHelloEndpoint() {
        Mockito.when(greetingService.hello()).thenReturn("hello from server"); (3)

        given()
          .when().get("/hello-client")
          .then()
             .statusCode(200)
             .body(is("hello from server"));
    }

}

1	Inject the CDI bean.
2	RestClient type.
3	Mock the hello request.

See the guide Testing to explore in details.

Configure MicroProfile rest client for Mutual TLS

Add the following properties to enable SSL in your application src/main/resources/application.properties

application.properties

org.acme.client.mtls.GreetingService/mp-rest/url=https://localhost:8443
org.acme.client.mtls.GreetingService/mp-rest/trustStore=classpath:/META-INF/resources/client.truststore
org.acme.client.mtls.GreetingService/mp-rest/trustStorePassword=password
org.acme.client.mtls.GreetingService/mp-rest/keyStore=classpath:/META-INF/resources/client.keystore
org.acme.client.mtls.GreetingService/mp-rest/keyStorePassword=password

quarkus.ssl.native=true

Run it

mvn quarkus:dev

Now let’s hit the client /hello-client endpoint, and you should expect the following.

curl http://localhost:8080/hello-client
hello from server

External Configuration

You do not want to have a certificate inside your application and Quarkus allows you to use external configuration and override the runtime application properties.

Let’s check how we can do in Kubernetes / OpenShift.

During the application boostrapping you added the kubernetes-config extensions. The extension works by reading ConfigMaps directly from the Kubernetes API.

In case you are in a restricted environment which not allow the role to view ConfigMap to your service account, you need to mount the external config directory under the current working directory, for instance <working-dir>/config/application.properties

The working directory for:

jvm redhat-openjdk-18/openjdk18-openshift image is /deployments
native ubi-quarkus-native-s2i:19.3.1-java11 image is /home/quarkus

volumeMounts sample

# ...

      volumes:
        - name: config
          configMap:
              name: client

# ...
          volumeMounts:
            - name: config
              mountPath: /deployments

Secret

Create server, client and truststore secret which contains your certificates and truststore. For instance:

kubectl create secret generic server --from-file=tls/server/
kubectl create secret generic client --from-file=tls/client/
kubectl create secret generic truststore --from-file=tls/ca/truststore

ConfigMap

Create the server and client ConfigMap.

server-ConfigMap.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: server
data:
  application.properties: |
    quarkus.http.ssl.certificate.key-store-file=/deployments/tls/server.keystore
    quarkus.http.ssl.certificate.key-store-password=password
    quarkus.http.ssl.certificate.trust-store-file=/deployments/tls/ca/truststore
    quarkus.http.ssl.certificate.trust-store-password=password

client-ConfigMap.yaml

kind: ConfigMap
apiVersion: v1
metadata:
  name: client
data:
  application.properties: |
    org.acme.client.mtls.GreetingService/mp-rest/url=https://server:8443
    org.acme.client.mtls.GreetingService/mp-rest/trustStore=/deployments/tls/ca/truststore
    org.acme.client.mtls.GreetingService/mp-rest/trustStorePassword=password
    org.acme.client.mtls.GreetingService/mp-rest/keyStore=/deployments/tls/client.keystore
    org.acme.client.mtls.GreetingService/mp-rest/keyStorePassword=password

Enable `kubernetes-config` extension on the server and client application

Add the following properties for the server application:

application.properties

# only when running in prod (Kubernetes environment)
%prod.quarkus.kubernetes-config.enabled=true

quarkus.kubernetes-config.config-maps=server

and the client application:

application.properties

# only when running in prod (Kubernetes environment)
%prod.quarkus.kubernetes-config.enabled=true

quarkus.kubernetes-config.config-maps=client

See the guide Kubernetes Config to explore in details.

Deploy Everything

Here an example for the client application:

kind: Deployment
apiVersion: apps/v1
metadata:
  name: client
  namespace: mtls
spec:
  replicas: 1
  selector:
    matchLabels:
      app: client
  template:
    metadata:
      labels:
        app: client
    spec:
      volumes:
        - name: client
          secret:
            secretName: client
        - name: truststore
          secret:
            secretName: truststore
      containers:
        - name: client
          image: 'image-registry.openshift-image-registry.svc:5000/mtls/client:latest'
          ports:
            - containerPort: 8443
              protocol: TCP
          resources: {}
          volumeMounts:
            - name: client
              readOnly: true
              mountPath: /deployments/tls
            - name: truststore
              readOnly: true
              mountPath: /deployments/tls/ca

See this instruction https://github.com/openlab-red/quarkus-mtls-quickstart/tree/master/deploy to explore in details.

解决方案

You have successfully implemented a Mutual TLS with Quarkus. The full Quarkus Mutual TLS example is available in the github repository mentioned in the links section.

Links

GitHub repository: https://github.com/openlab-red/quarkus-mtls-quickstart
